During hot rolling, oxide scale forms on billets and slabs. If not removed efficiently before each rolling pass, it gets pressed into the surface — causing defects, poor finish, increased rejection rates, and downstream quality failures. Inconsistent descaling across the product width worsens the problem.
ARS supplies a complete turn-key system where all components — high-pressure pumps, valve technology, piping, nozzle beams, and control system — come from a single coordinated development. Every part is matched to every other, ensuring maximum functionality, uniform impact across product width, and real-time condition monitoring.
Pressure is piped directly from the pumps to the descaler — no accumulators or intermediate storage. The speed-dependent delivery volume and proportional pressure provide a real-time assessment of the entire system condition during operation. Any deviation in nominal pressure immediately indicates a malfunction or error, enabling instant response.
Individual pressure and flow application per product is possible through frequency converter operation. Products that don't require high impact or need less water can run at lower energy — only the energy that is actually needed is consumed. This reduces operating costs and extends component life.
Every component engineered as part of a single integrated package.

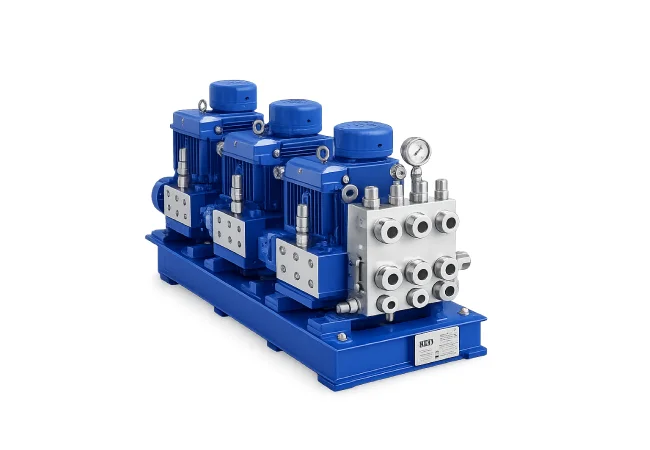

Radial plunger or triplex plunger pumps at 300 Bar. VFD-controlled for variable pressure and displacement.

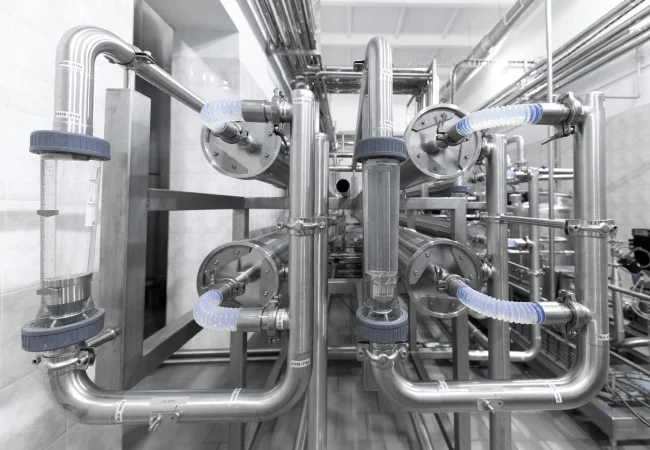

100% SS from pump outlet to nozzle exit. Water retains purity throughout — reduces wear on pumps, valves, nozzles and prevents nozzle clogging.
By monitoring the pressure/flow ratio, clogged, broken, or worn nozzles are detected immediately (25 bar change with a single clogged nozzle).
Proprietary valve systems for precise control of water delivery to each nozzle beam section.
HP lines and nozzle bars are supplied bolted — reduces assembly time, simplifies repair, expansion or modification without major effort.

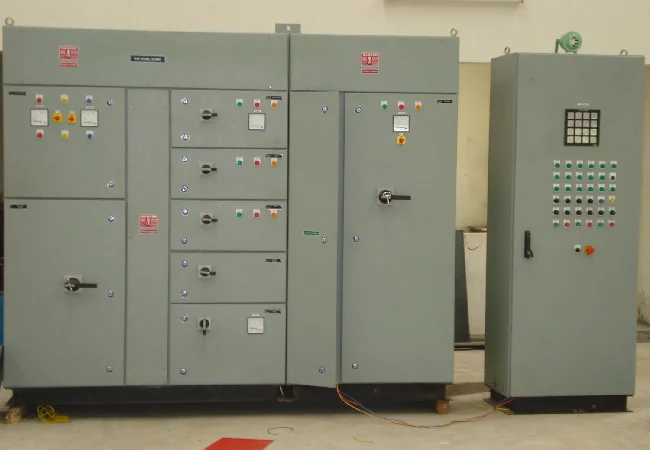

Integrated automation package — mechanical, fluids, electrics, and process modelling for consistent descaling performance.

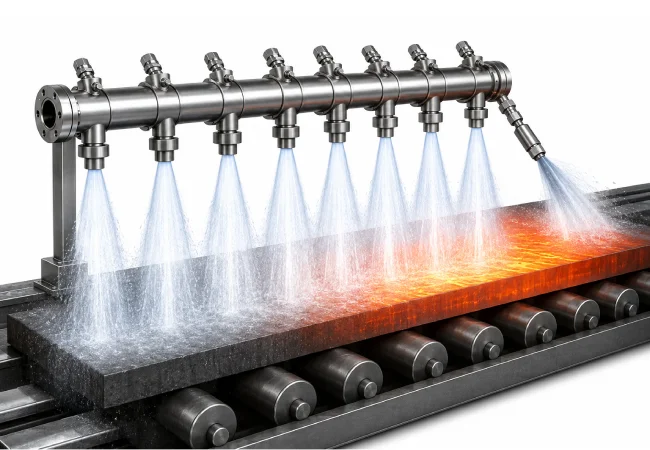

Our integrated mechatronic package ensures consistent scale removal over the entire width and length of the product — eliminating uneven surface quality that leads to downstream defects and rejections.
From design to commissioning — a fully integrated delivery.
